RAPTOR — Rapid Analysis Platform and Tactical Operations Rig
Specifications

Hardware specifications

Two NVIDIA GB10 compute nodes as standard with room for a third, a 1kWh battery, and an IP67-rated transit case. Configurations are quoted to the workload.

Compute

Compute specifications
Compute nodesTwo as standard; the bay takes three
SuperchipNVIDIA GB10 Grace Blackwell per node
Memory128GB unified LPDDR5x per node
Storage4TB NVMe per node
Node interconnect200Gb/s QSFP, direct-attach copper
Site network10GbE RJ45

Power

Power specifications
Input110-240V AC / 12-24V DC
Battery1000Wh LiFePO4
Solar400W MPPT input
Power drawUp to about 200W per node at sustained load
Battery runtimeAbout 2 hours at sustained full load on two nodes; longer at typical duty
Mains or vehicle DCRuns continuously

Physical

Physical specifications
CaseWheeled polymer transit case
RatingIP67 case rating (closed)
WeightApprox. 30kg / 66lb with two nodes
HandlingOne person can wheel it; two to lift
Drawings

General arrangement

General arrangement drawing of the RAPTOR unit: plan view of the open case with console and compute nodes in foam, plus front and side elevations
Plan view and elevations of the case.

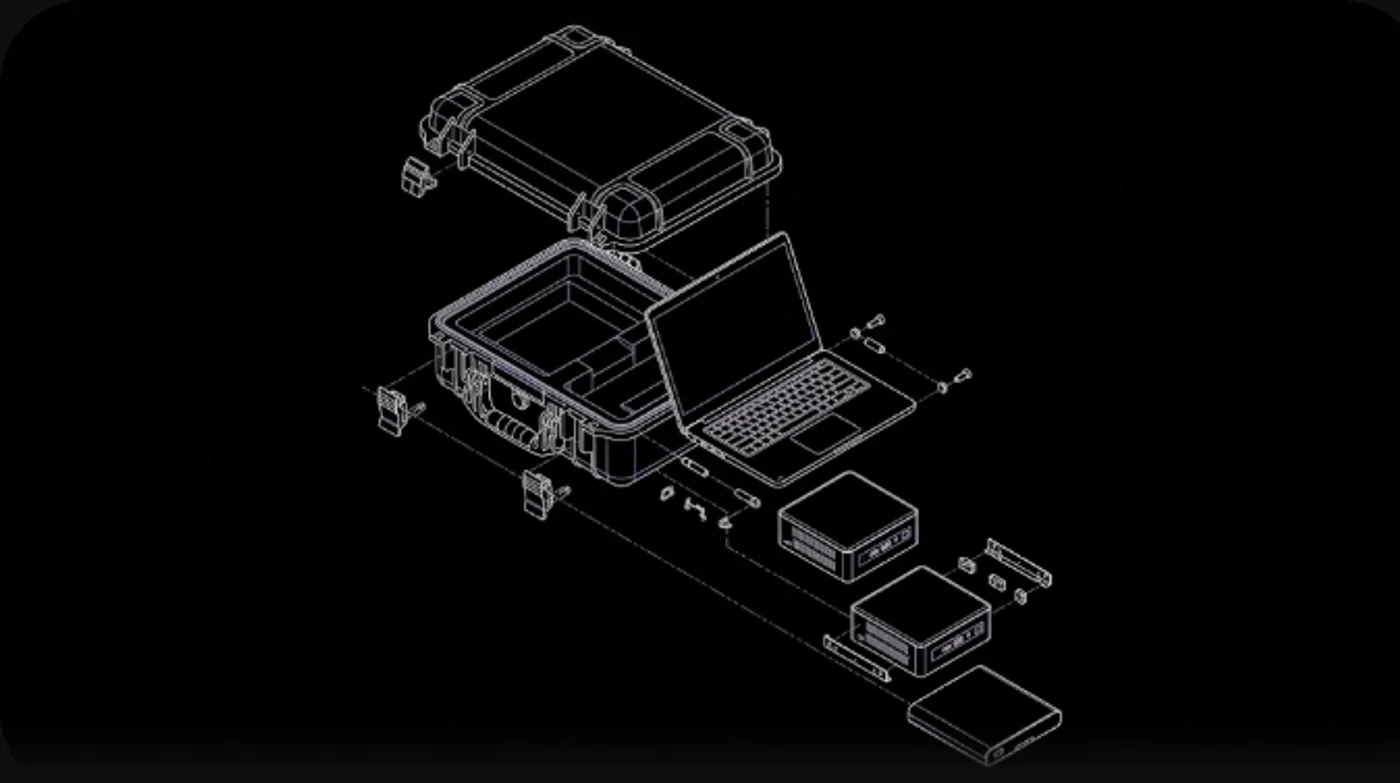

Exploded schematic illustration of the RAPTOR unit: transit case and lid, console, compute nodes, storage and power pack
Schematic illustration of the modules.

Tell us what you need to process

We size and quote a configuration to your workload and, where your security posture allows, set up an evaluation on your own material.
